Onvif 12MP 4K 25fps Wireless Wifi Camera 990X Zoom Outdoor Human Tracking POE PTZ Surveillance IP Camera Hikvision Da-hua ICSee

Dear buyer,

After purchasing the camera, if you have any questions during use, please contact us first. We are a professional manufacturer of PTZ cameras, please do not enter disputes or negative feedback. We will do our best to help you solve the problem. We welcome friendly buyers, thank you!

You can also send me an email,

our email address is: QQ1065341079@163.com

We do not welcome unfriendly buyers.

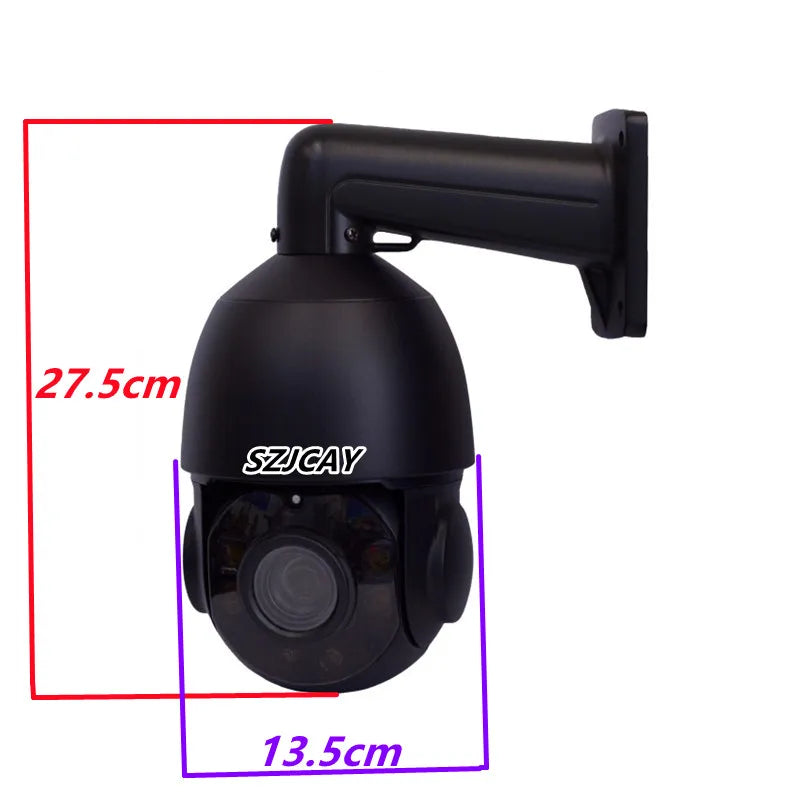

Size: 4 inches

1:WiFi camera: supports POE function or DC12V power supply

2: Equipped with built-in WiFi antenna, supporting connection to the router through WiFi and Ethernet cables.

3.Dual band: Supports 2.4G WiFi or 5G WiFi

There are three ways to connect a camera to a wireless WiFi router:

3-1. Soundwave distribution network, with the phone placed next to the camera. Open the link below to watch the video.The following video is for reference only, please refer to the actual product.

https://video.aliexpress-media.com/seller/play/5000216848917.mp4

3-2. Hotspot mode distribution network, mobile phone directly connected to camera WiFi hotspot: hotspot starting with AC18, password: 88888888. Then open the APP and configure WiFi network in the settings. If there is no WiFi router installed at the camera location, it supports the phone to directly access the camera's hotspot and view videos.

3-3. Support browser network configuration.

Support: ACP protocol AC18Pro / VideoLink、 Hikvision protocol, Onvif protocol, RTMP protocol, RTSP protocol

Support connecting multiple brands of NVRs: Hikvision, Dahua, XMEYE,Netip, And all NVRs that support the onvif protocol

Two specifications:

The 8mp 4k 25FPS camera adopts an 8mp 30x optical lens,3.3mm~99mm

The 12MP 4k 25FPS camera adopts a 12MP 33x optical lens,4.3mm~143mm

Model:JC-G2053Q/WZH/AJ

Specification: H49/800S7/W

The following is an introduction to the parameters of a 12MP 4k 25fps WiFi camera:

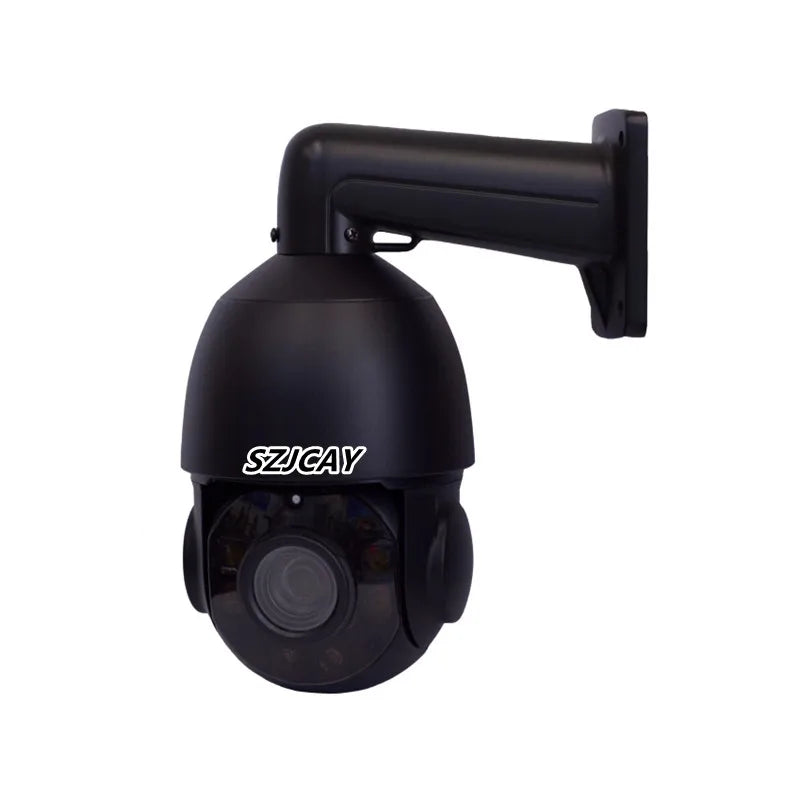

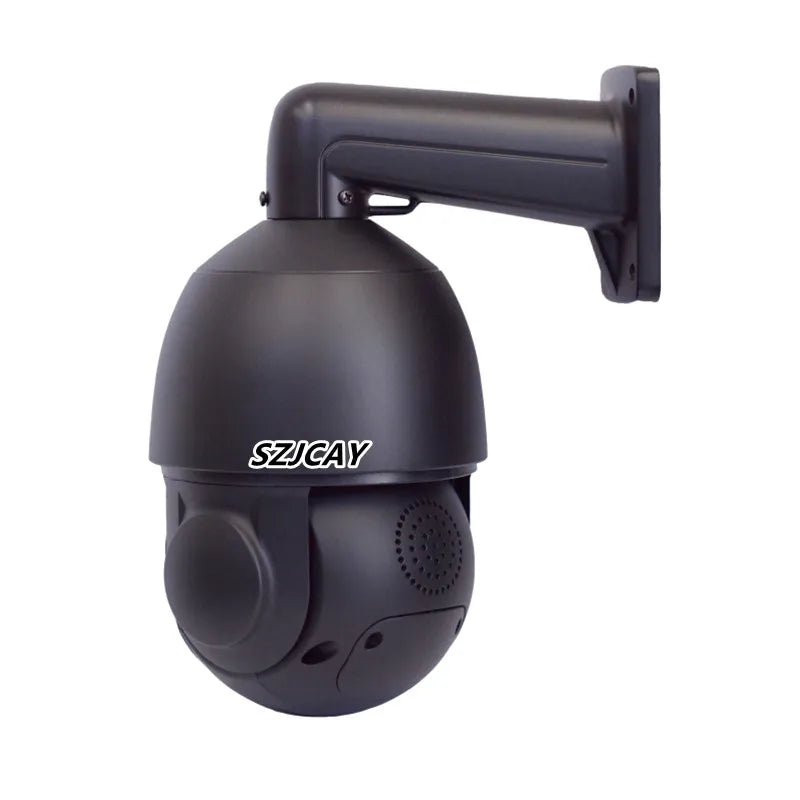

This is a newly released ultra-high definition intelligent Ball head webcam. It is equipped with a 12MP 33x optical zoom ultra high definition day and night confocal lens, Multiply by 30x digital zoom and achieving 990x zoom. Support the main stream to output 4K 25fps images or 1080P 60fps images, and sub stream to output 1080P 25fps images, with clarity surpassing similar cameras. This camera supports 360 ° horizontal unrestricted rotation and can achieve uninterrupted tracking and cruising for 7 * 24 hours. Equipped with 10 high-power LED lights, it can achieve an infrared night vision distance of 150 meters and white light illumination at night of 50 meters. Rich AI intelligent programming can meet the monitoring needs of most application scenarios, truly achieving multi mode, multi angle, and multi scene video monitoring. All functions can be customized. This camera supports multiple connection protocols and is fully compatible with your NVR and third-party management software platforms. Supports ONVIF, Hikvision protocol, RTSP protocol, RTMP protocol, etc.., and supports IEEE802.3AT (1236/4578) output 48V 30W POE connection.

We can provide users with SDK secondary development kits.

If you order this product in large quantities, we can provide you with model customization and other services, which can display this model on the Hikvision NVR. We can negotiate the price and offer a large batch price.

The usage method is as follows:

1. The default camera runs in DHCP mode. Connect the camera to the router using an Ethernet cable, and it will automatically obtain the IP address. If you need to know the IP address of the camera, please contact the seller to request an IP search tool and install it to find the IP address of the camera. If the camera is connected to the NVR without a router, it is necessary to set a firmware IP address for the camera using a computer in advance, and the IP address needs to be the same as the NVR network segment.

2.Mobile app: VideoLink can be searched and downloaded from the app store.

  APP usage methods: register an account (please use an email number to register), add a device, connect wirelessly, and scan the device QR code.

The APP supports PTZ control, zoom, remote video playback, resolution adjustment, bitstream adjustment, interception rate adjustment, preset automatic cruise control, automatic scanning, and automatic tracking. Share with multiple mobile devices.

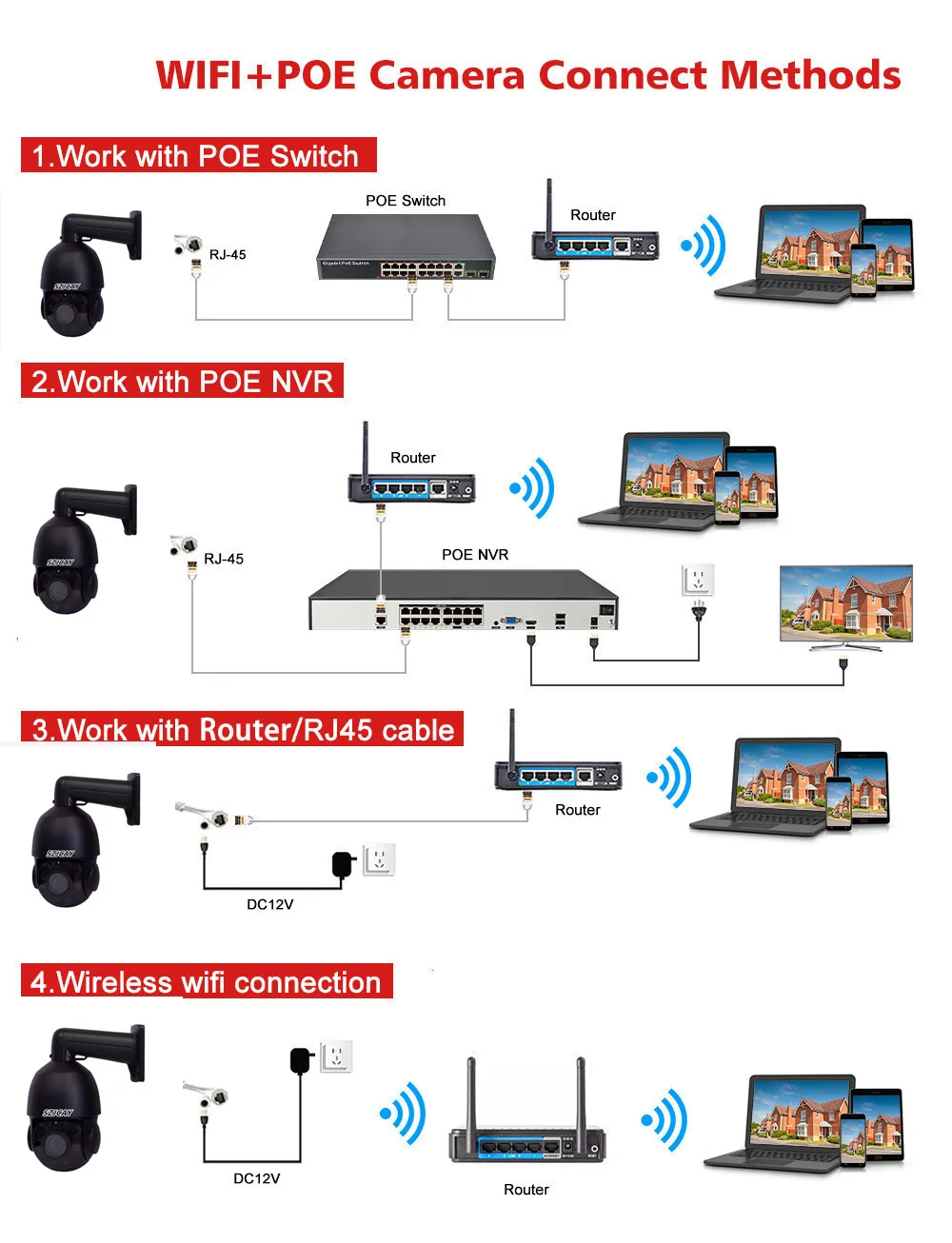

3.NVR connection method:

  The camera supports the onvif protocol and can be used with any third-party POE NVR or regular NVR (NVR without POE functionality).

 The camera supports POE power supply or DC12V power supply. When using a camera, please choose one of the methods to power  the camera. If you use both methods to power the camera simultaneously, the camera will be burned out. We ship the camera with a DC12V power transformer.

  Default user: admin Password: 123456. If you lose your password or want to reset the camera settings, the camera cable has a Factory reset button.

  POE plug and play, with just one network cable connecting each IP camera to a POE switch or NVR to power and transmit video signals. Connect a network cable from the POE switch to the router, and the camera can be used separately on the mobile app for viewing. POE connection is simple and convenient.

The shipping list is as follows:

Camera * 1 , wall mounted bracket * 1, DC12V power transformer * 1, screws * 1, 1 meter network cable, and a functional manual.

If you encounter any problems using this product, please remember to contact us. We are willing to help every customer, as the product undergoes multiple tests before shipment. If you don't know how to use it, we can provide assistance remotely. Due to the time difference, we will quickly assist you within 13 hours.

Product Introduction:

1. Adopting a 12MP ultra high definition day night confocal lens, high sensitivity, high signal-to-noise ratio SC835 image sensor, MSTAR SSC378QE processing chip, the highest image output resolution can reach 3840 * 2160P

2. Supports 8MP 25FPS, 6MP25FPS , 5MP/4MP/3MP at 30 frames per second, 2MP at 60 frames per second

3. H.265 compression algorithm effectively reduces network bandwidth and supports dual streaming,

4. H.265+, H.265, H.264, and MJPEG compression algorithms effectively reduce network bandwidth,

5. Supports 2 streams and supports mobile monitoring

6. Support for human recognition triggering SD card recording, SD card capture, voice alarm, mobile application message push, and image capture to accurately locate the current video playback,

7. Support fog function, support WDR, HDR. Supports powerful light suppression function.

8. Support for human and vehicle shape recognition (including stationary and operating states).

9. Supports multiple network protocols: TCP/IP, HTTP, TCP, FTP, DHCP, DNS, RTSP, RTMP, etc.

10. Supports ONVIF protocol and Hikvision protocol

11. Support for sound input and output (default built-in pickup and speaker)

12. Support for customizing alarm recording time

13. Supports both static IP and dynamic IP (DHCP) (default dynamic IP)

14. Support for custom network card (Mac) addresses

15. Supports P2P plug and play and mobile phones

16. Supports IE, Google, and Firefox browsers

17. Support for custom user and permission management

18. Provide motion detection (area and sensitivity can be set) alarm function

19. Supports up to 512GB Micro SD card

20. Support PC client to play SD card recordings

21. Support mobile phone playback of SD card recordings

Camera technical parameters: (Specification: H49/800S7/W )

Product Introduction

1. Supports infinite horizontal 360 degree rotation and vertical 95 degree rotation. The speed can be adjusted within the range of 0.1 to 80 degrees per second

2. Supports three sets of light control: infrared short distance light, infrared long distance light, and white light, which can achieve full color and full infrared modes day and night

3. Support human/vehicle tracking;

4. Support tracking modes such as fixed point tracking, cruise tracking, 360 degree horizontal scanning tracking, left and right limit scanning tracking, etc

5. Supports adjustable time limited tracking/continuous tracking modes, and supports adjustable tracking speed

6. Supports 2 sets of cruises, with a maximum of 64 preset positions per set. And it supports adjustable cruise point dwell time and cruise speed.

7. Support regular functions such as protective position, 360 degree horizontal scanning, extreme scanning, and idle operation. And supports adjustable dwell time and speed

8. IP66 waterproof grade.

Tracking function:

Support for fixed-point tracking:

Before starting the tracking, the user can set a starting tracking position and preset it to position 88. After the pre position 97 call turns on tracking, the camera will automatically rotate to this position and wait for tracking. When a person or car is detected, the camera will automatically start tracking. After the tracking is completed, the camera will automatically return to this position to wait for the next tracking.

2. The camera supports adjusting the tracking speed.

If the tracking speed is too fast or too slow, users can use programming functions to set the tracking speed according to actual application scenarios.

3. Support tracking time settings

Users can set the tracking time for each camera according to their actual needs.

a: Users can set the tracking time length for each trace to 15-60 seconds. After reaching the tracking duration, the camera will discard the tracked target and automatically return to its initial position to wait for the next tracking.

b: Users can also perform continuous tracking mode on each trace. When the camera detects a person or car, as long as the tracking target does not disappear, the camera will continuously track the target.

Cruise tracking: Users can set some preset positions, supporting up to 64 preset positions

The camera supports cruising between multiple preset positions. When the camera finds the tracking target, it will automatically activate the tracking function (tracking speed and tracking time are the same as fixed point tracking). When the number of tracked targets is small, the camera will automatically resume cruising.

Three modes are available at night:

1. Infrared mode:

The laser infrared light of the camera automatically turns on at night, achieving an infrared night vision version. Automatically recognize the focal length of the lens and turn on the close range laser infrared light or the long range laser infrared light.

2. Intelligent mode:

When the camera detects a person or car, it will automatically turn on the white light and the image will appear in color night vision mode. When a person or car leaves, the camera will automatically switch to infrared mode.

3. Full color mode:

Automatically turn on white light at night, and the image appears in color night vision mode.

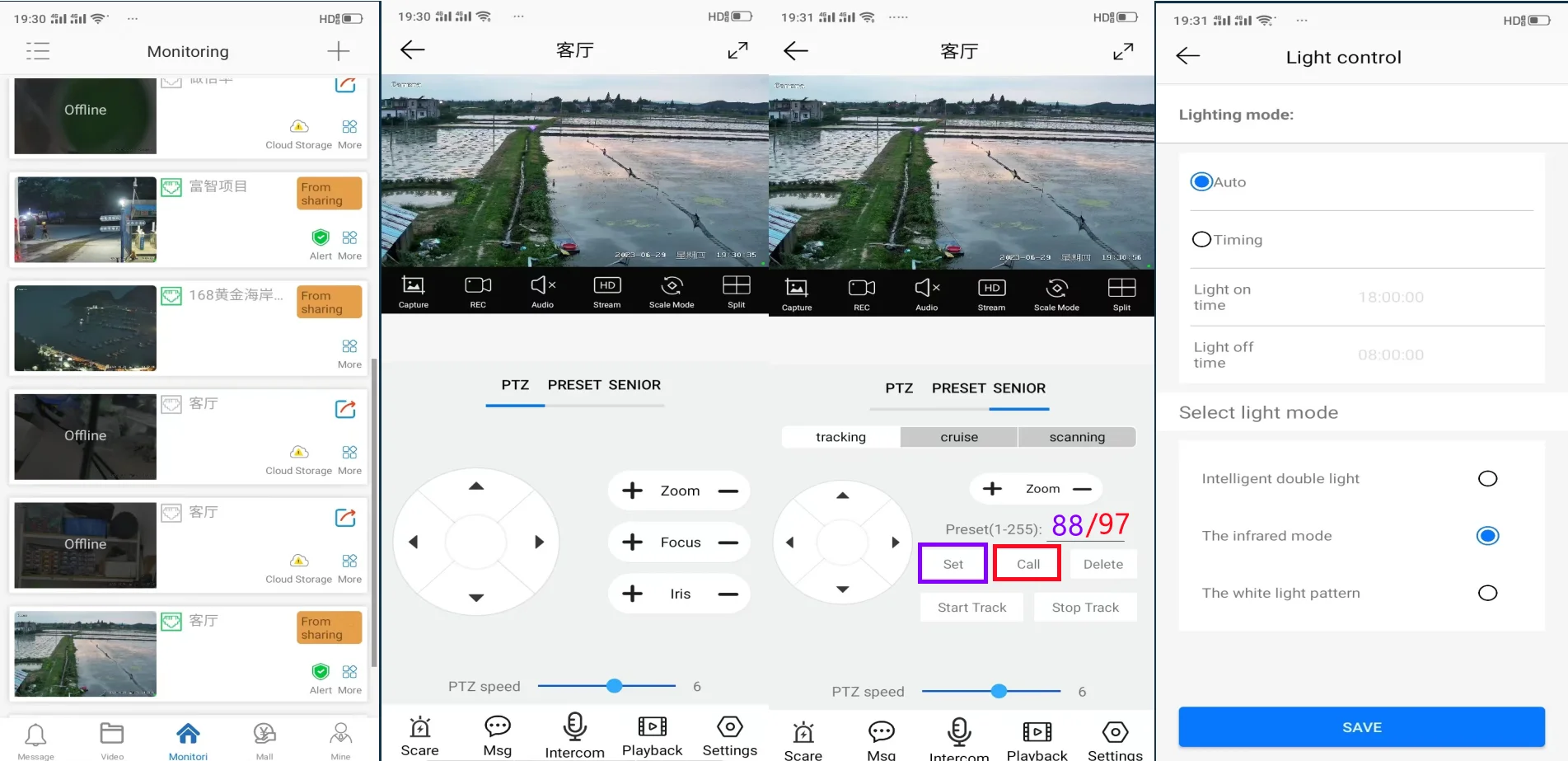

Mobile app display:Videolink

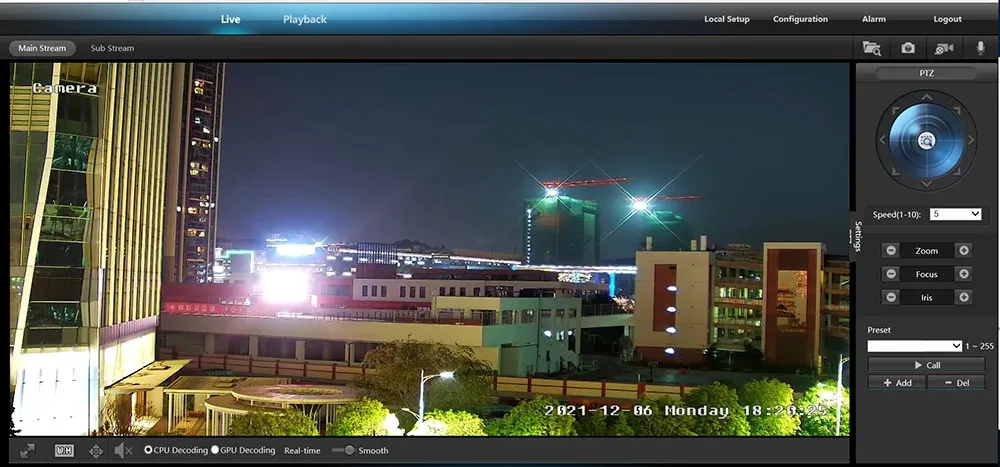

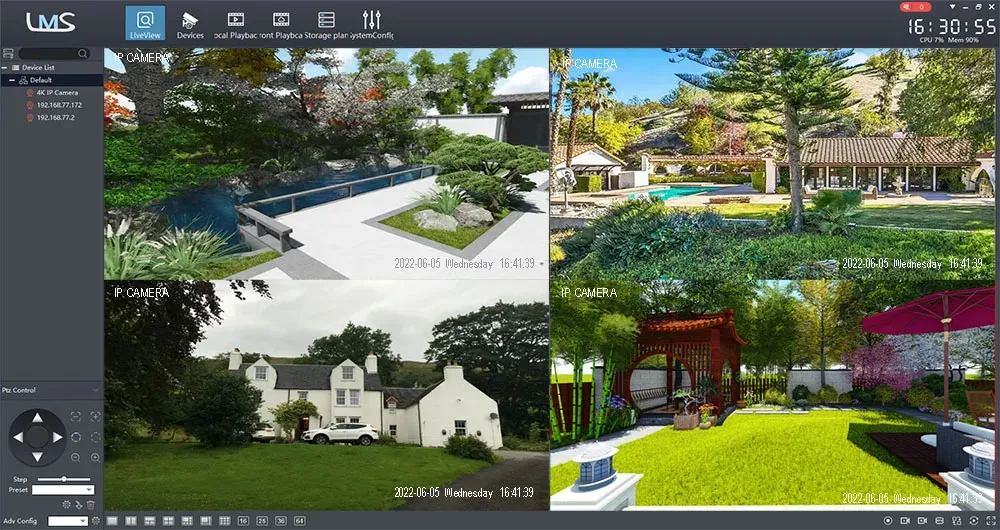

PC program: LMS

CGI snapshot：

Main-stream snapshot URL：http://ip/snapshot.cgi?stream=1&username=admin&password=123456

Sub-stream snapshot URL：http://ip/snapshot.cgi?stream=0&username=admin&password=123456

About RTSP:

The RTSP URL format is as follows (assuming the camera IP is 192.168.0.123):

Main stream: rtsp://admin:123456@192.168.0.123/stream0

Substream: rtsp://admin:123456@192.168.0.123/stream1

For the RTSP URL above, if audio is enabled, the stream will contain both video and audio.

If you only need video or audio data, use the following URL:

Main stream pure video: rtsp://admin:123456@192.168.0.123/video1

Substream pure video: rtsp://admin:123456@192.168.0.123/video2

Audio only: rtsp://admin:123456@192.168.0.123/audio

Package list:

1x 8MP 4K 30X Optical Zoom PTZ IP Camera

1x DC12V 2A power adapter

1x Manual
